| Suzhou SuperMax Smart System Co., Ltd. |

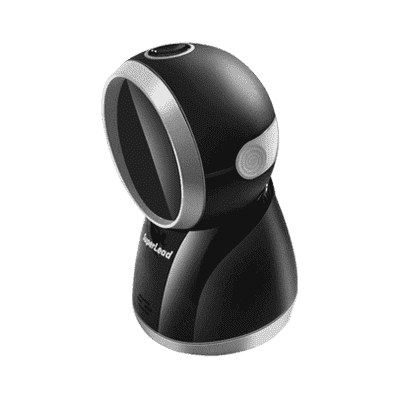

7350 Technical Specification |
|
| Physical Characteristics | ||
| Dimensions: | 150mm x 95mm x 98mm | |
| Weight: | 295g | |
| Voltage: | 5 VDC15% | |
| Current: | 500mA (Operating) | |
| Performance Characteristics | ||
| Light Source: | illumination: 617nm RED LED | |
| Field of View: | 55°(H)x 47°(V) | |
| Roll / Pitch / Yaw: | 360°, ±65°, ±60° | |
| Print Contrast: | 15% minimum reflective difference | |
| Motion Tolerances | up to 200 cm per second | |
| Interfaces Supported: | USB, RS232 | |
| Image (Pixels) : | 1280 pixels (H)x 1080pixels (v) | |
| Symbology Decode Capability | 1-D: | UPC，EAN,Code128, Code 39, Code 93, Code11，Matrix 2 of 5, Interleaved 2 of 5, Codabar , etc. |
| 2-D: | PDF417,Data Matrix,Maxicode, QR Code,Aztec, etc. | |
| Minimum Resolution: | 3 mil Code39 | |
| User Environment | ||
| Operating Temperature: | 0℃ to 50°C | |
| Storage Temperature: | -40℃ to 70°c | |
| Humidity: | 0% to 95% relative humidity,non-condensing | |
| Drop Specifications: | Designed to withstand 1m drops | |
| Ambient Light lmmunity: | 100.000 Lux. | |
| Decode Ranges | ||
| 3.13mil C39 | 30mm-50mm | |
| 4.7mil C39 | 30mm-80mm | |
| 5.13mil c39 | 20mm-115mm | |
| 6.88mil PDF | 0mm-160mm | |
| 10mil DM | 10mm-180mm | |
| 20mil QR | 0mm-230mm | |
| Performance may be impacted by bar code quality and environmental conditions. | ||
