Model |

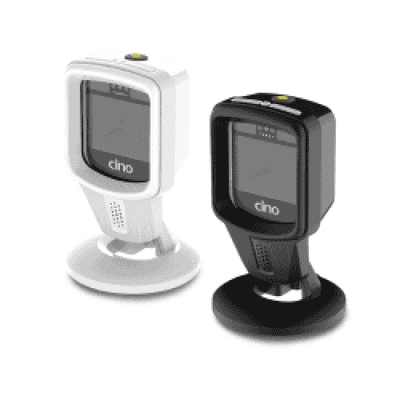

Fuzzyscan S680 |
Performance Characteristics |
Image Sensor |
1280 x 800 Pixels |
Print Contrast |
15% minimum reflectance difference |
Light Source |
660 nm LED |
Imager Field of View |
56˚H x 37˚V |
Minimum Resolution |
3 mil Code 39
5 mil DM |
Motion Tolerance |
up to 617 cm (243 in.) per second |
Reading Range |
0 to 10.1 in. for 13 mil (0.33 mm) UPC/EAN |
Roll, Pitch, Skew |
Roll: 360˚; Pitch: ± 70˚; Skew: ± 60˚ |
Host Interfaces |
USB HID (USB Keyboard)
USB VCOM (USB COM port emulation)
Standard RS232 |
Configuration Setup |
FuzzyScan iCode
FuzzyScan Barcode commands
FuzzyScan PowerTool |
Data Formatting |
DataWizard |
Data Processing |
DataWizard Premium |
Image Capture |
BMP |
User Environment |
Drop Specifications |
Withstands multiple drops from 1.5 m to concrete |
Environmental Sealing |
IP52 |
Operating Temperature |
-10˚C to 50˚C (14˚F to 122˚F) |
Humidity |
5% to 95% relative humidity, non-condensing |
Ambient Light Immunity |
0 ~ 106,000 lux |
Electrostatic Discharge |
Functional after ±15 KV direct air discharge |
Supported Symbology |
1D Linear Codes |
Code 39, Code 39 Full ASCII, Code 32, Code 128,
GS1-128, GS1 DataBar, Codabar, Code 11, Code 93,
Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5,
Matrix 2 of 5, IATA, Telepen, MSI/Plessey & UK/Plessey,
UPC/EAN/JAN, UPC/EAN/JAN with Addendum |
2D Codes |
PDF417, Micro PDF417, Codablock F, Code 16K, Code 49, Composite Codes, DataMatrix, MaxiCode, QR Code, MicroQR, Aztec |
Postal Codes |
Australian Post, US Planet, US POSTNET, Japan Post, Posi LAPA 4 State Code |
Safety & Regulatory |
EMC |
CE, FCC, BSMI, RCM, KC, VCCI |
Safety |
LED Eye Safety IEC62471, Exempt Group |
Environmental |
Compliant with EU RoHS directive
Compliant with China RoHS directive |
Physical Characteristics |
Dimensions |
90.4 x 90.1 x 148.5 mm |
Weight |
150g (cable excluded) |
